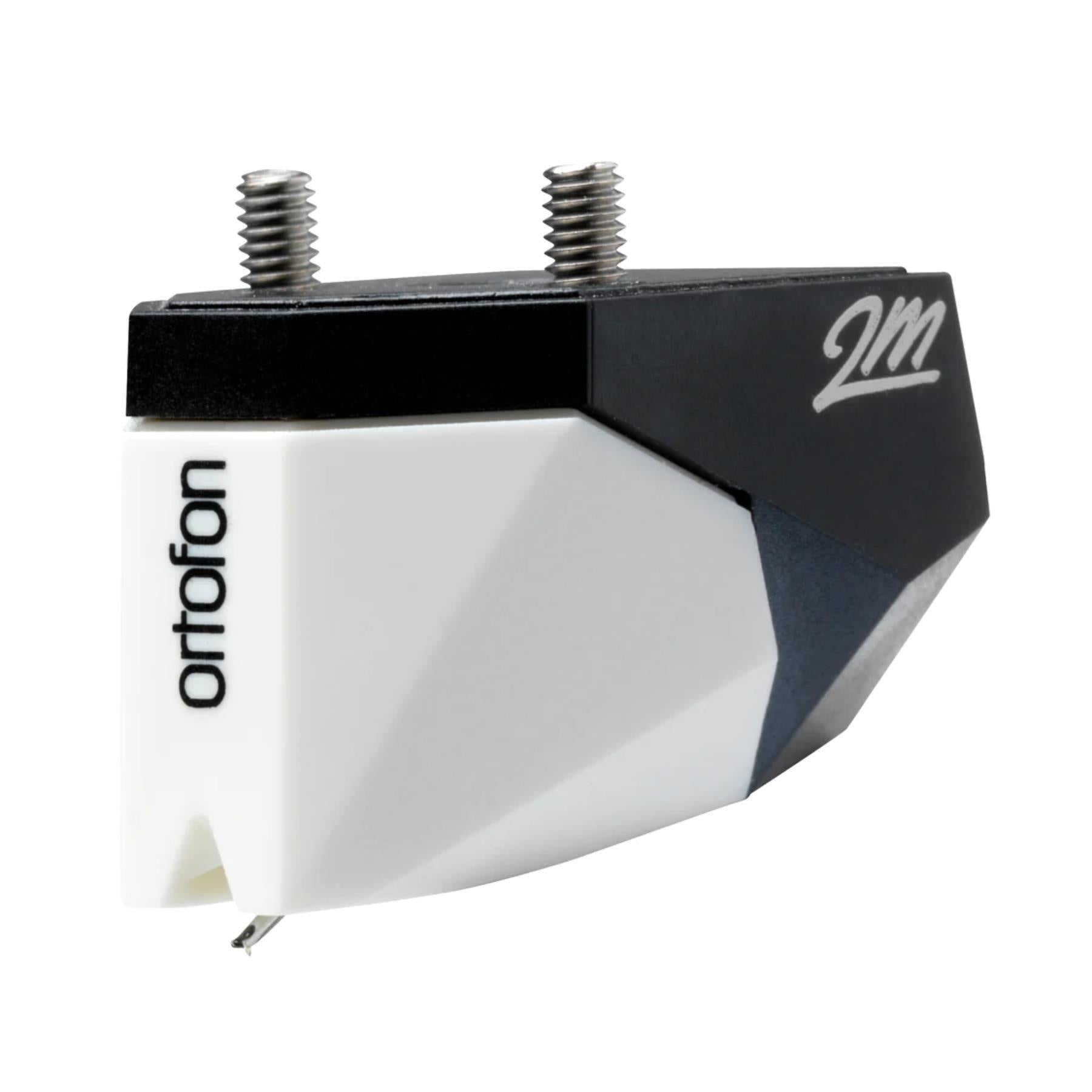

Ortofon 2M Mono Verso Moving Magnet Cartridge for Bottom Mount Headshells

Ortofon 2M Mono Verso Cartridge for Bottom Mount Headshells Elevate Your Mono Vinyl Experience with the Ortofon 2M Mono Verso Cartridge Experience the authentic nostalgia of mono vinyl records with the Ortofon 2M Mono Verso cartridge. Specifically crafted for mono microgroove LP vinyl records, this cartridge brings out the best in your vintage collection. Ortofon 2M Mono Verso Key Features: Stylus: Features an R 18µm Nude Spherical diamond stylus for optimal playback quality and vintage mono soundscapes. Output: Utilizes a strapped output for true mono reproduction on any stereo playback system. Compatibility: Designed for easy mounting on most turntables, with variants available for direct mounting or bottom mount headshells. Ortofon 2M Mono Verso Specifications: Output voltage at 1 kHz, 5cm/sec: 4 mV Frequency response: 20 Hz – 20 kHz (+3 / -1 dB) Tracking ability at 315Hz at recommended tracking force: 70 µm Compliance, dynamic, lateral: 18 µm/mN Stylus type: Nude Spherical Tracking force range: 1.6-2.0 g (16-20 mN), recommended: 1.8 g (18 mN) Tracking angle: 20° Internal impedance, DC resistance: 700 Ohm Cartridge color: Black/White Cartridge weight: 7.2 g, Premounted cartridge weight: 16.7 g Recommended load resistance: 47 kOhm Internal inductance: 350 mH Recommended load capacitance: 150-300 pF Ortofon 2M Mono Verso Replacement guide Remove the stylus with the stylus protection guard from the cartridge body to avoid damaging the diamond. Using the Torx 8 key, unscrew the black screw from the Verso top plate. Gently detach the top plate by pulling the screws. Remove the two countersunk screws from the top plate. Insert the two M2.0 mm screws in the top plate. Attach the top plate to the cartridge body by flipping it 180 degrees. Mount the black screw in the top plate and tighten with appropriate force. Mount the cartridge on the tonearm using the enclosed tool. Mount the stylus with the stylus protection guard on the cartridge body. Immerse yourself in the rich, authentic sound of mono vinyl records with the Ortofon 2M Mono Verso cartridge. Order yours today and step into an era of true audio nostalgia. Ortofon 2M Mono Downloads Ortofon 2M Mono User GuideOrtofon 2M Mono Brochure / Data Sheet
