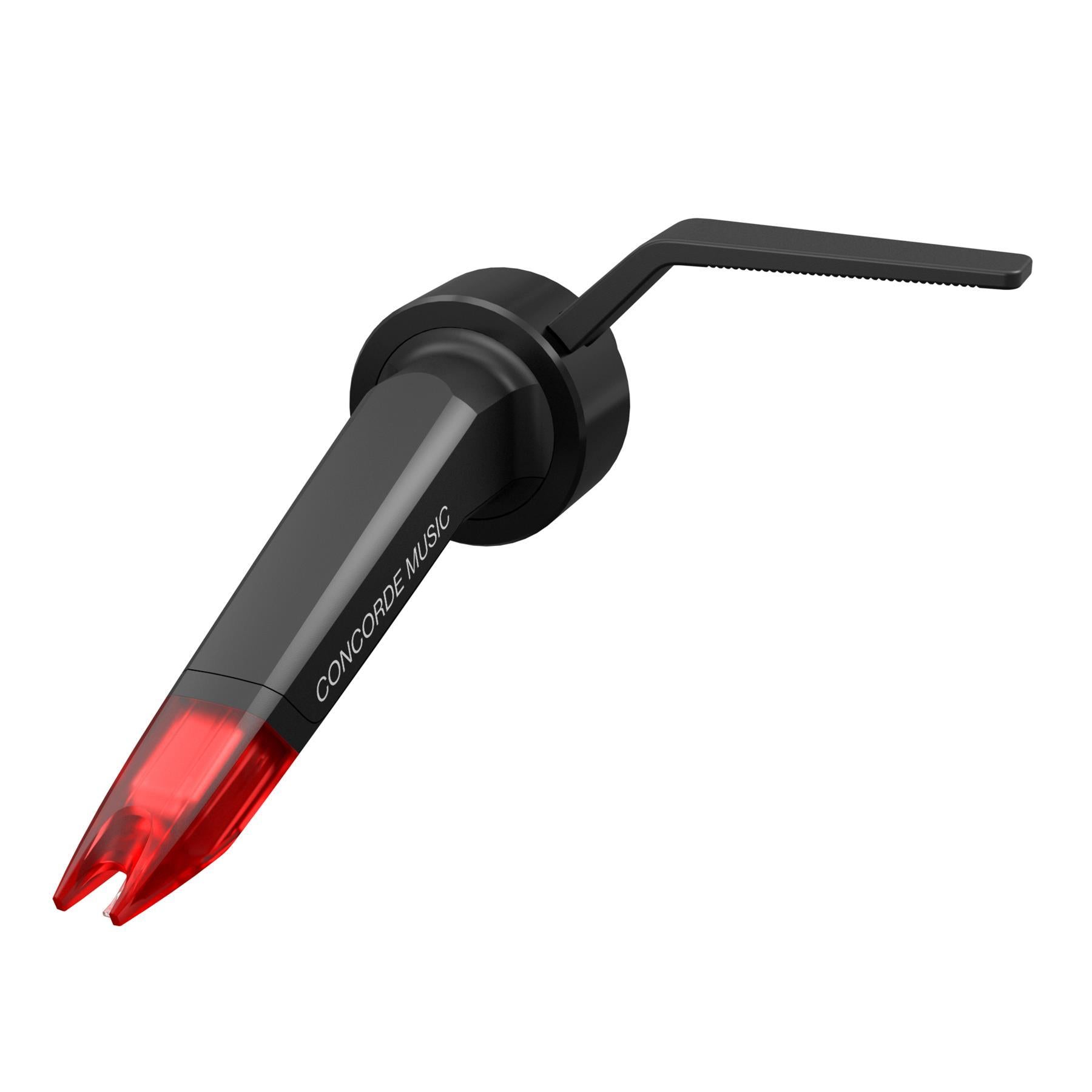

Ortofon Concorde Music Red Moving Magnet Cartridge

Ortofon Concorde Music Red Moving Magnet Cartridge for S-Shaped Tonearms Unlock the full potential of your vinyl collection with the Ortofon Concorde Music Red. Crafted for audiophiles by audiophiles, this cartridge delivers a balanced and dynamic sound experience, elevating every listening session to new heights. Ortofon Concorde Music Red Key Features: Elliptical diamond stylus on an Aluminum cantilever Upgradeable through the Concorde Music series Easy installation with no tools required Award-winning iconic design Premium rubber suspension for enhanced performance Quad-coil generating system with split pole pins Ortofon Concorde Music Red Specifications: Channel balance at 1 kHz: 1.5 dB Output voltage at 1 kHz, 5cm/sec: 6mV Channel separation at 1 kHz: 22 dB Channel separation at 15 kHz: 15 dB Frequency response: 20 Hz – 20 kHz (+3 / -1 dB) Tracking ability at 315Hz at recommended tracking force: 80 µm Compliance, dynamic, lateral: 15 µm/mN Stylus type: Elliptical diamond on Aluminum cantilever Stylus tip radius: r/R 8/18 µm Tracking force, recommended: 1.8 g Tracking angle: 20° Internal impedance, DC resistance: 1.27 kΩ Cartridge color: Black/Red Cartridge weight: 18 g Recommended load resistance: 47 kΩ Internal inductance: 815 mH Recommended load capacitance: 150-300 pF Upgrade your vinyl setup effortlessly with the Ortofon Concorde Music Red cartridge. Compatible with all S-shaped tonearms, its bayonet/SME connector ensures seamless integration. Explore the full range of Concorde Music styli for a customizable listening experience. Transform your passion for music into an immersive journey with Ortofon. Ortofon Concorde Music Userguide
